Spex Seating
Spex Stylo 160

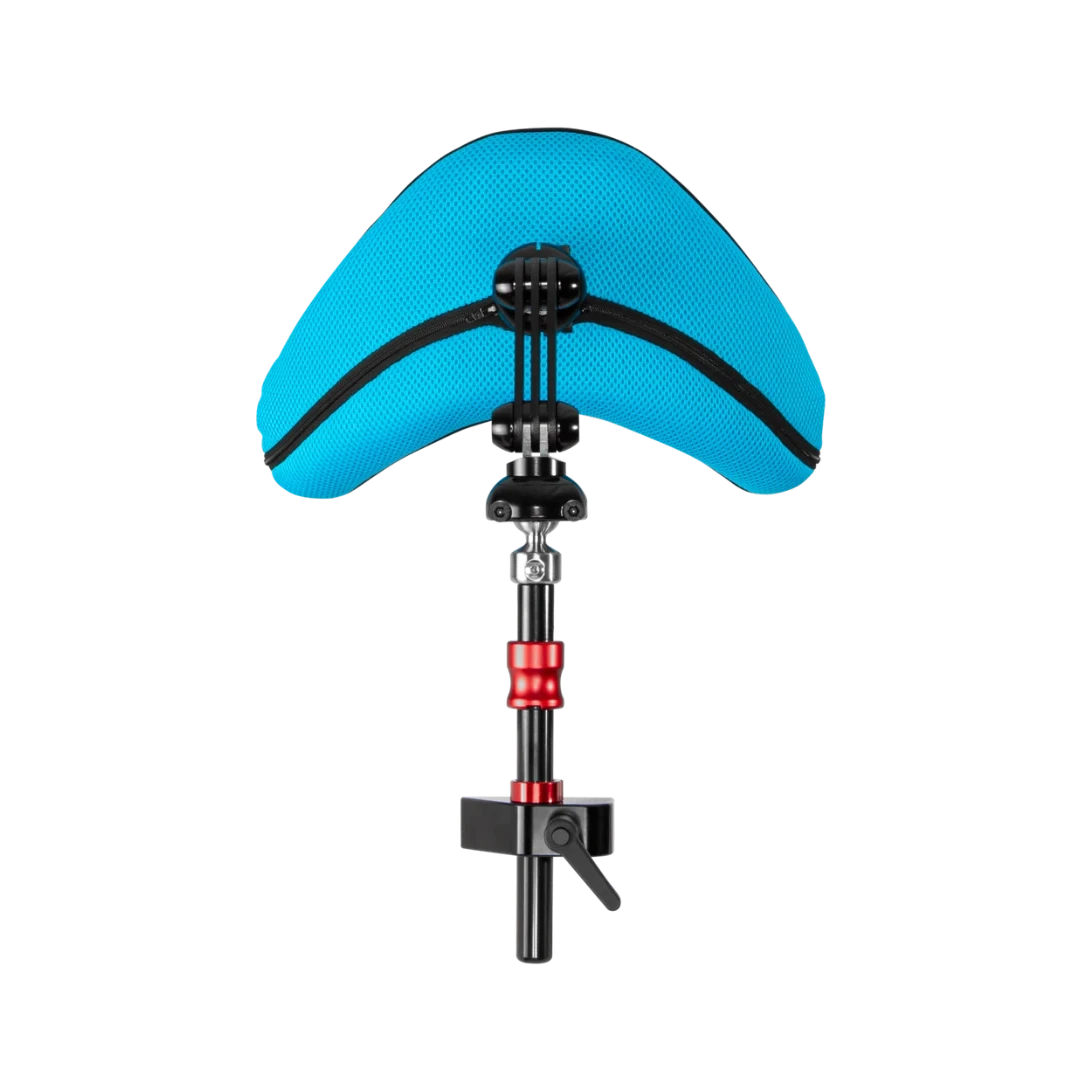

A compact adjustable head support from the Spex Stylo range, designed to provide targeted head positioning and comfort within a wheelchair seating system.
Features
- Adjustable head support
- Compact 160 size
- Mounting hardware compatible
- Head positioning
Specifications
- Weight (standard)
- 915 g (excluding head pad)
- Weight (flip-back)
- 930 g (excluding head pad)
- Horizontal forward adjustment
- 160 mm reach
- Vertical adjustment (standard)
- 135 mm
- Vertical adjustment (flip-back)
- 145 mm / 80 mm
- Sideways adjustment
- 200 mm (additional 25 mm increments via alternative mounting positions)
- Frontal angle adjustment
- 360°
- Sagittal angle adjustment
- 180° top hinge + 90° top ball joint; 180° bottom hinge + 90° bottom ball joint
- Transverse angle adjustment
- 90°
- Pitch range
- 45°
